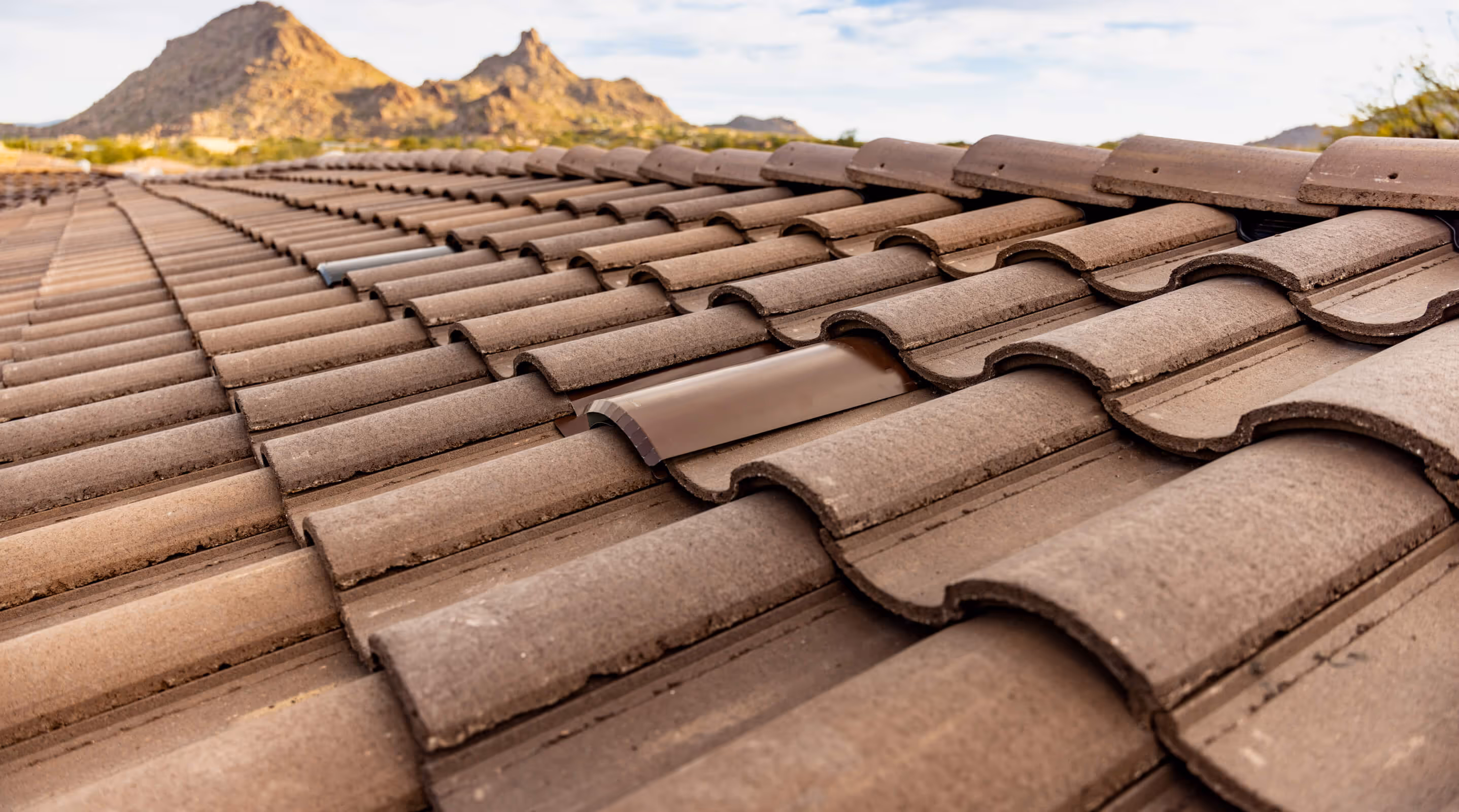

The New Standard in Tile Roof Ventilation
Coronado’s patented Roof Vents are engineered specifically for concrete tile roof systems, offering maximum airflow while blending seamlessly into the roof’s aesthetic.
Coronado VentsTM provide 100 square inches of NFVA (net-free ventilation area), ensuring maximum airflow while providing superior protection against water infiltration. Designed by roofers for roofers, they are easy to install, requiring minimal effort with maximum results. Our primary vent has a revolutionary shape, allowing water to flow around it, instead of behind it. The vent hole is approximately the same size and shape as other tile vents on the market, therefore making product substitution very simple. Coronado Roof Tile Vents have a sleek, attractive appearance, making them the new standard in concrete tile roof ventilation.
Product Details

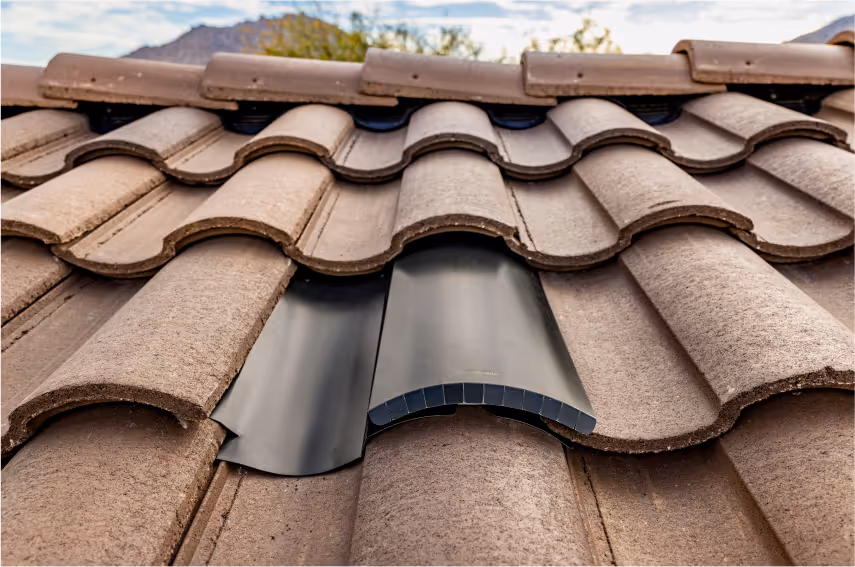

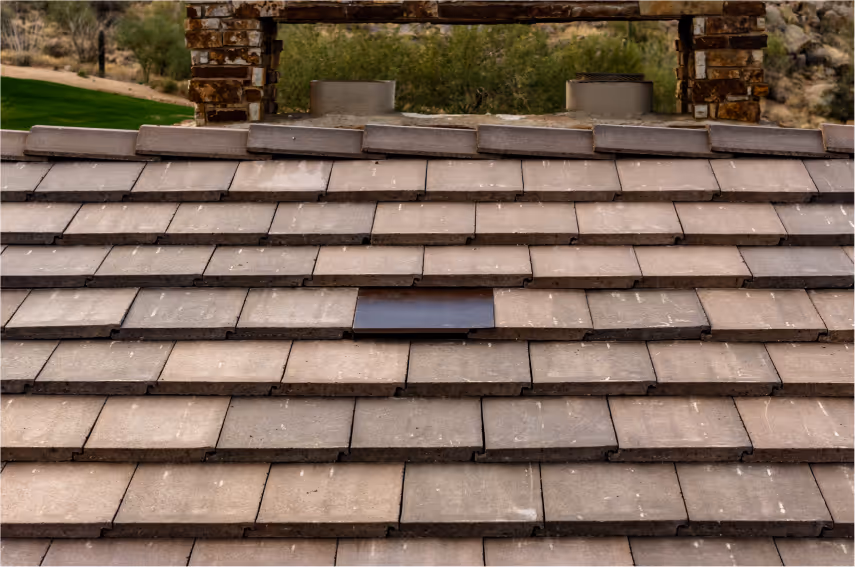

Colors
Coronado Vents™ come prefinished in Brown and Charcoal with a standard 10yr paint warranty, saving your installers time by eliminating the need for painting. If a different color is desired, our finish can act as a primer, allowing for easy post-painting in the field. For large orders, ask about our custom color options.
*Disclaimer: paint scratches are not a cause for rejection

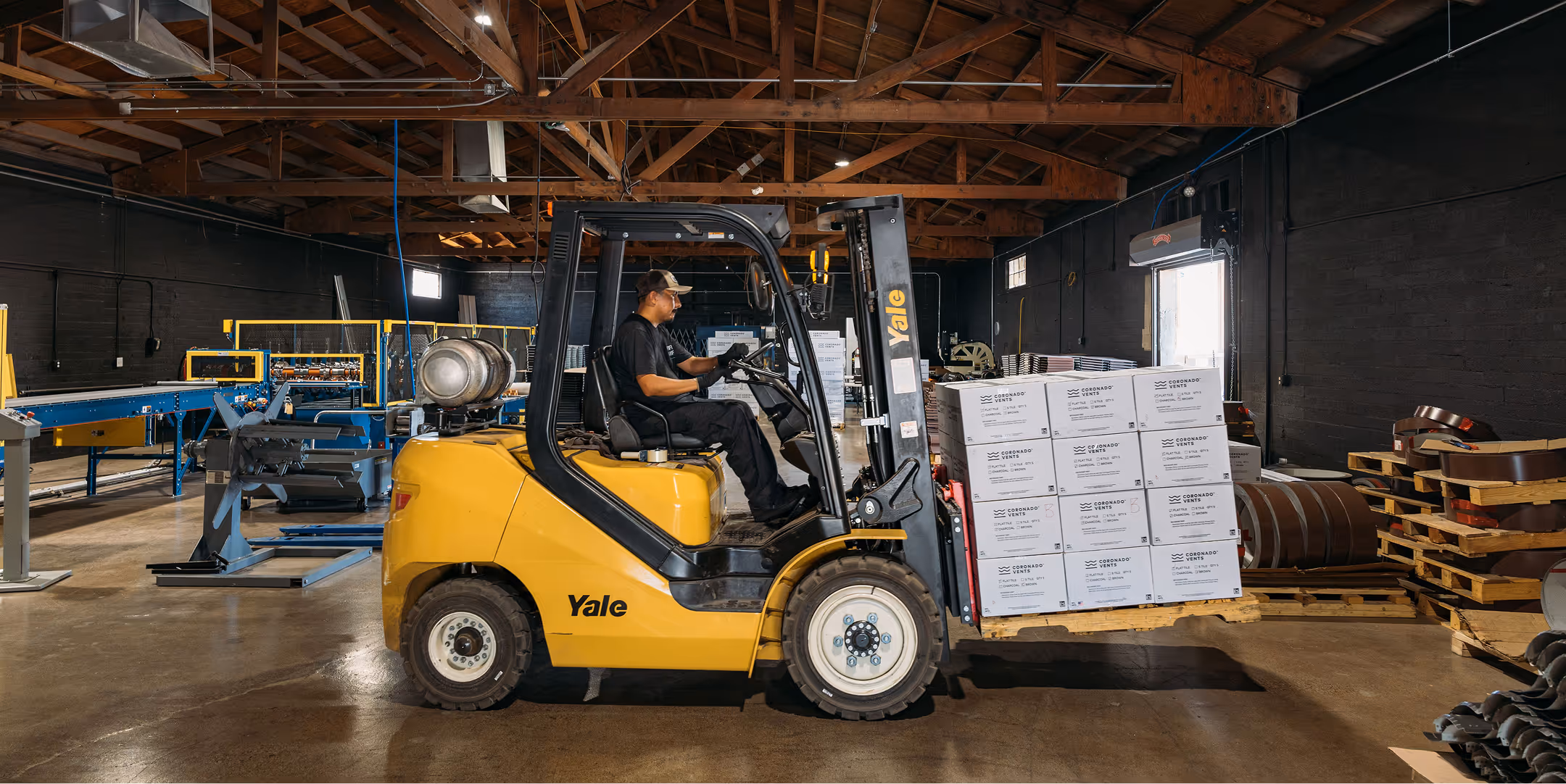

Packaging
Coronado Vents™ come in sets of 5, optimizing roof stocking, reducing shelf space, and simplifying transport. Efficient, compact, and designed for seamless storage and handling.
Approvals
ESR-5554
Patents:
D1065504
D1068056
D1067418
Other patents pending

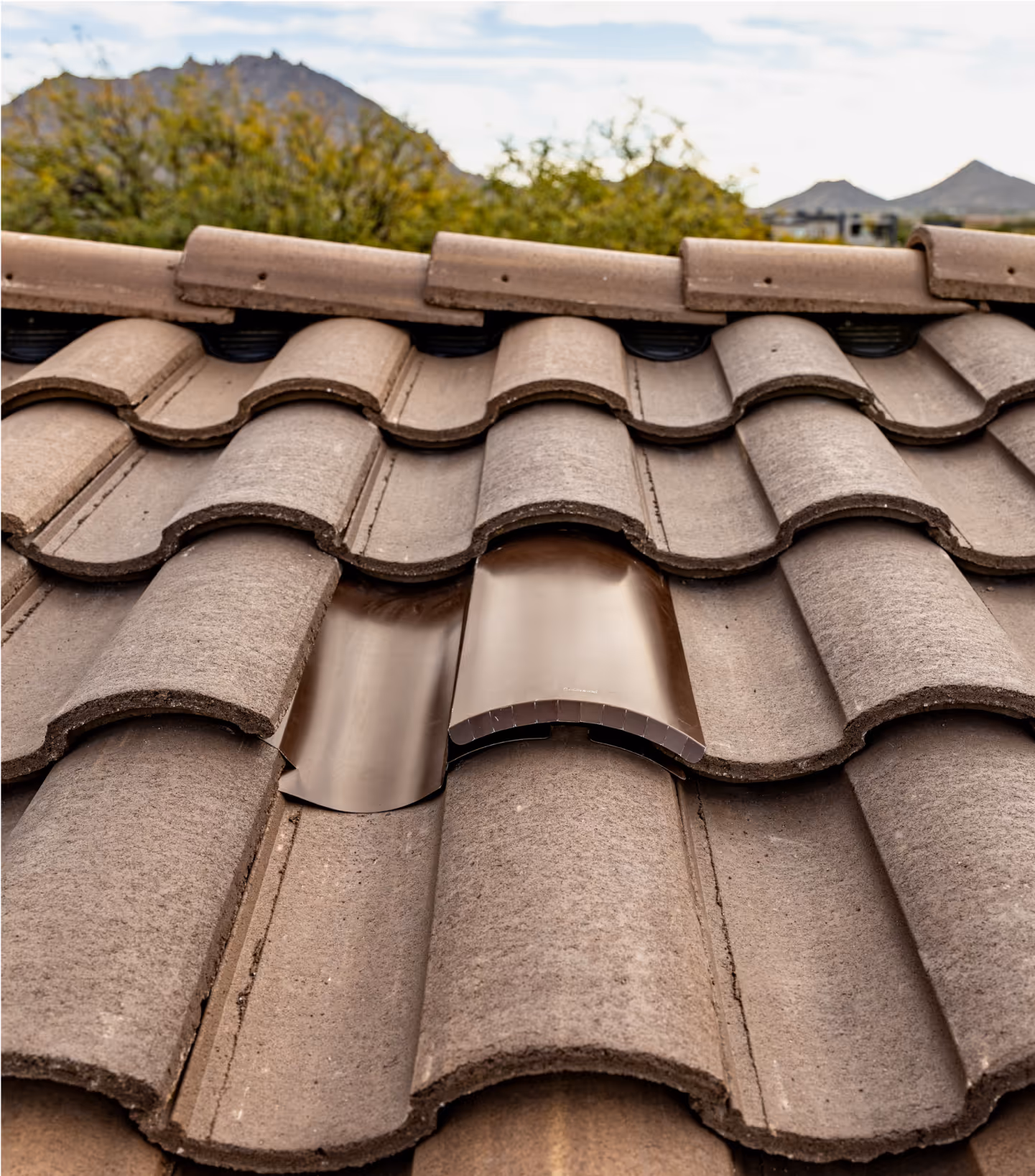

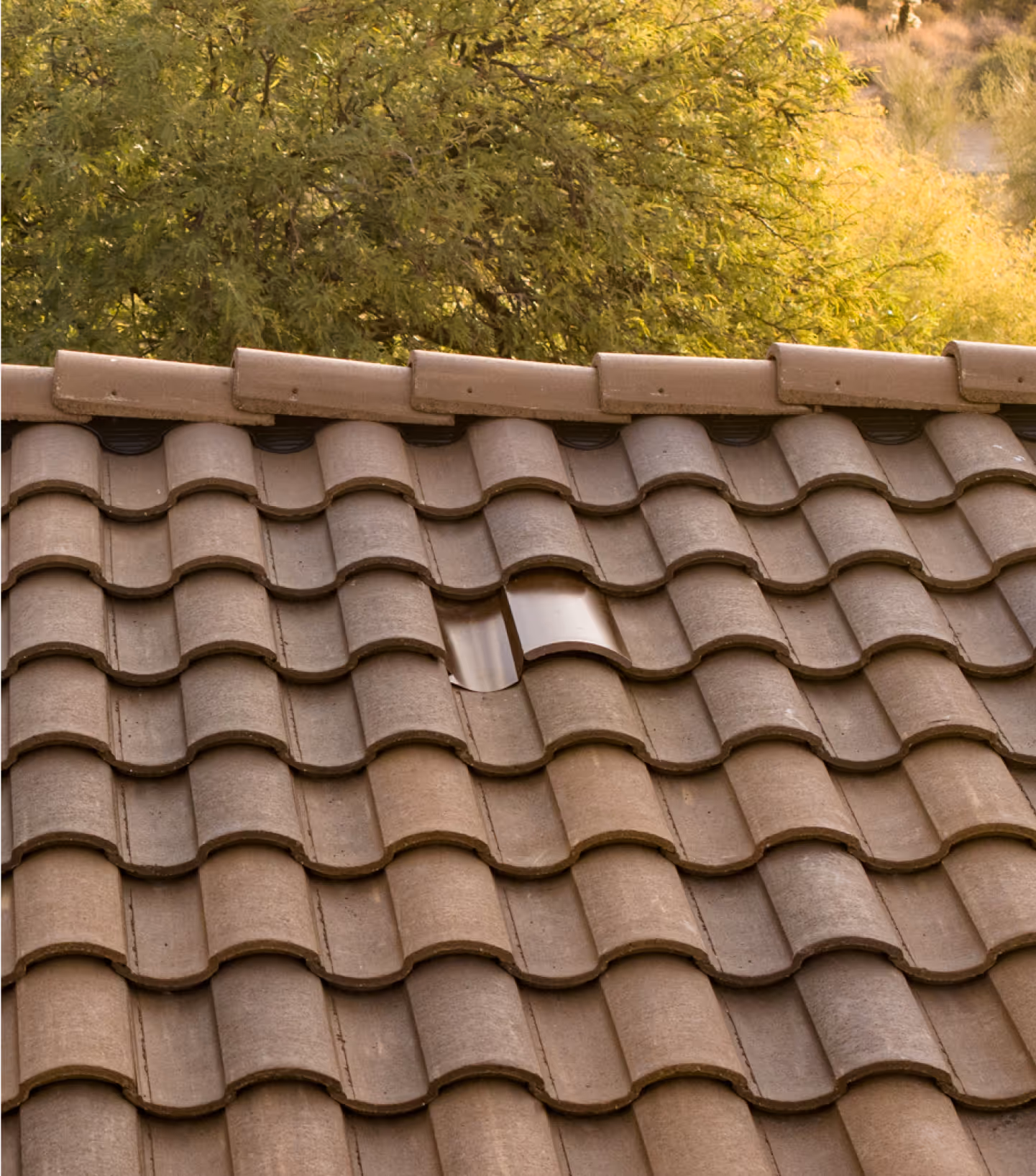

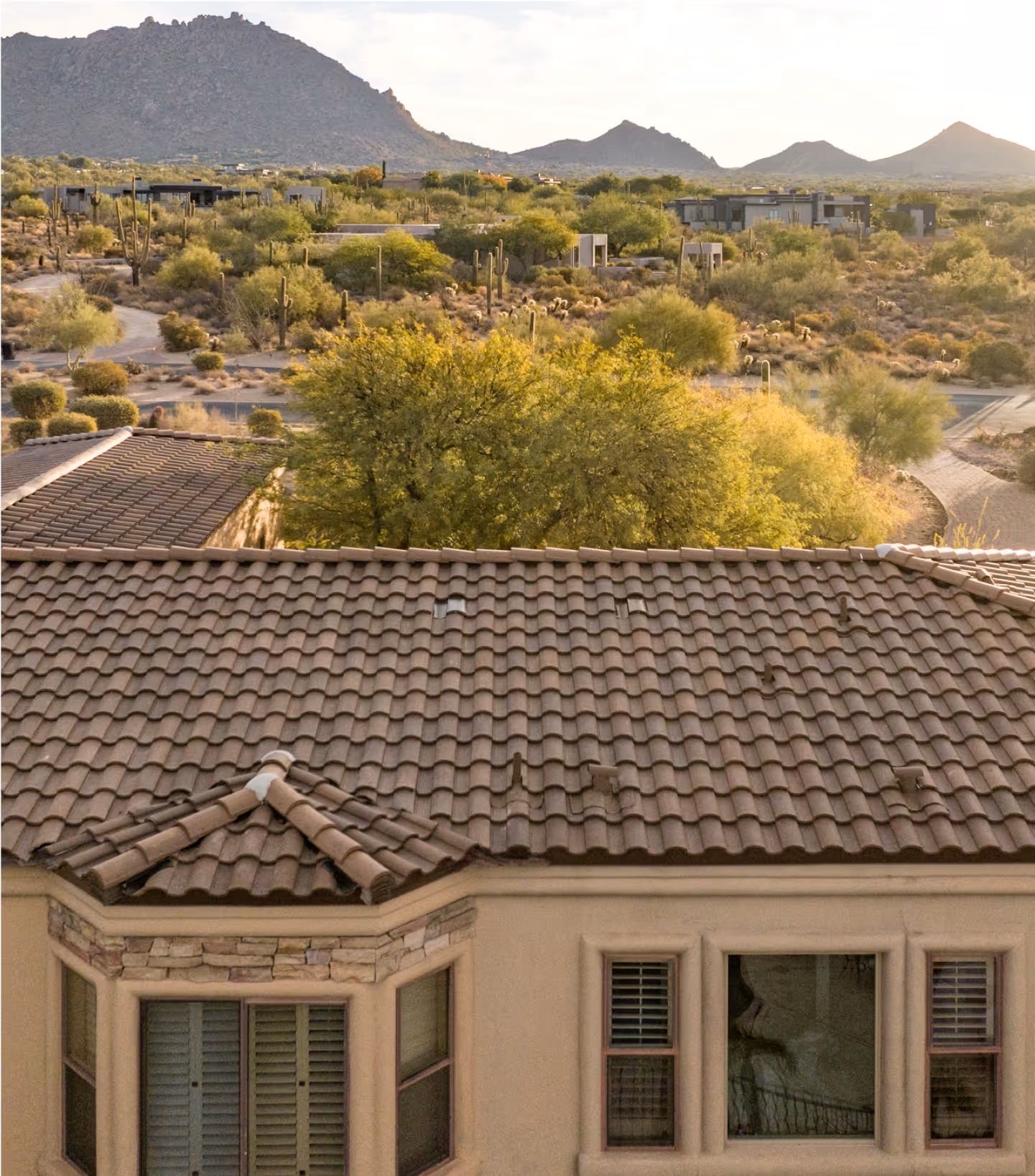

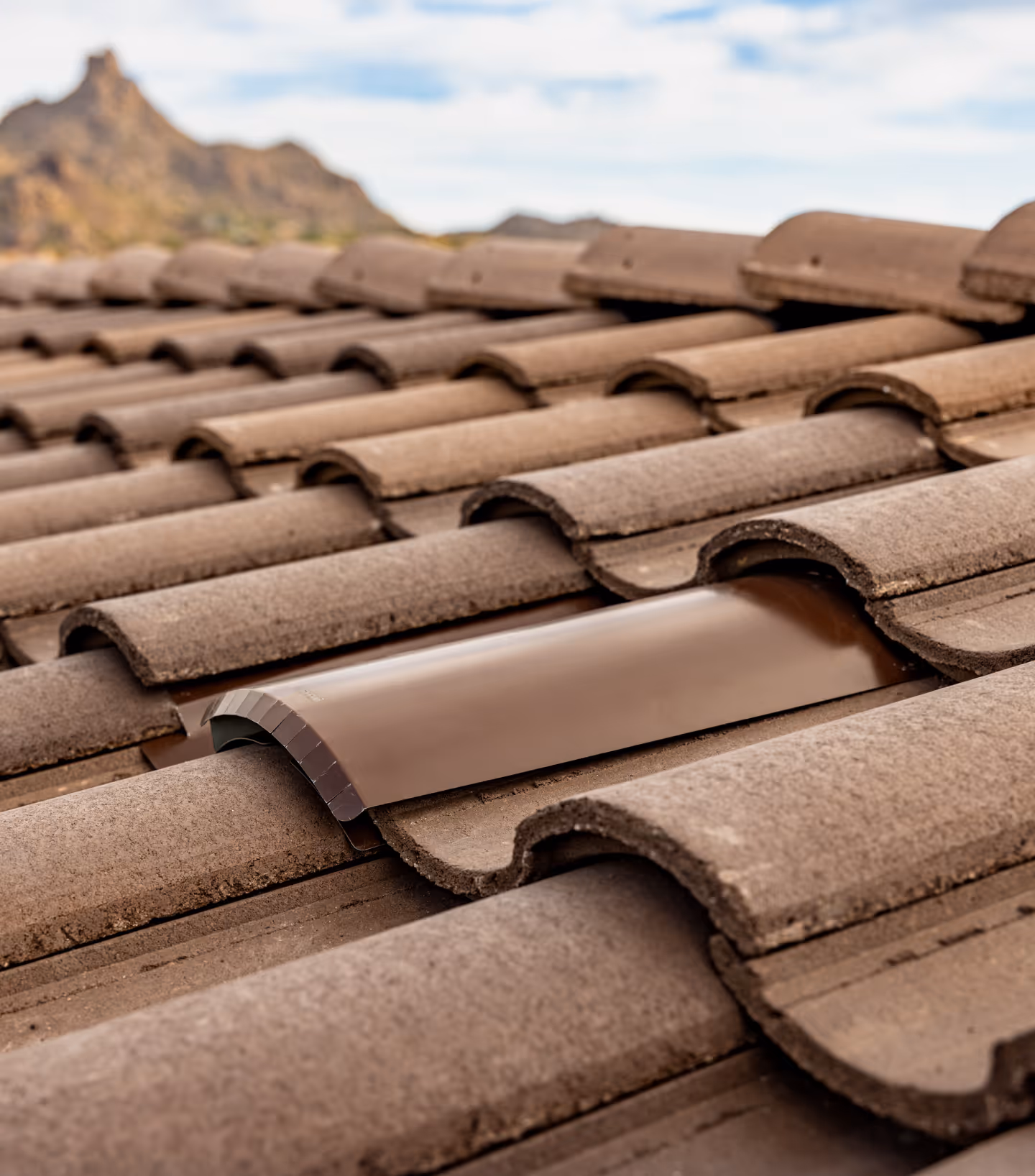

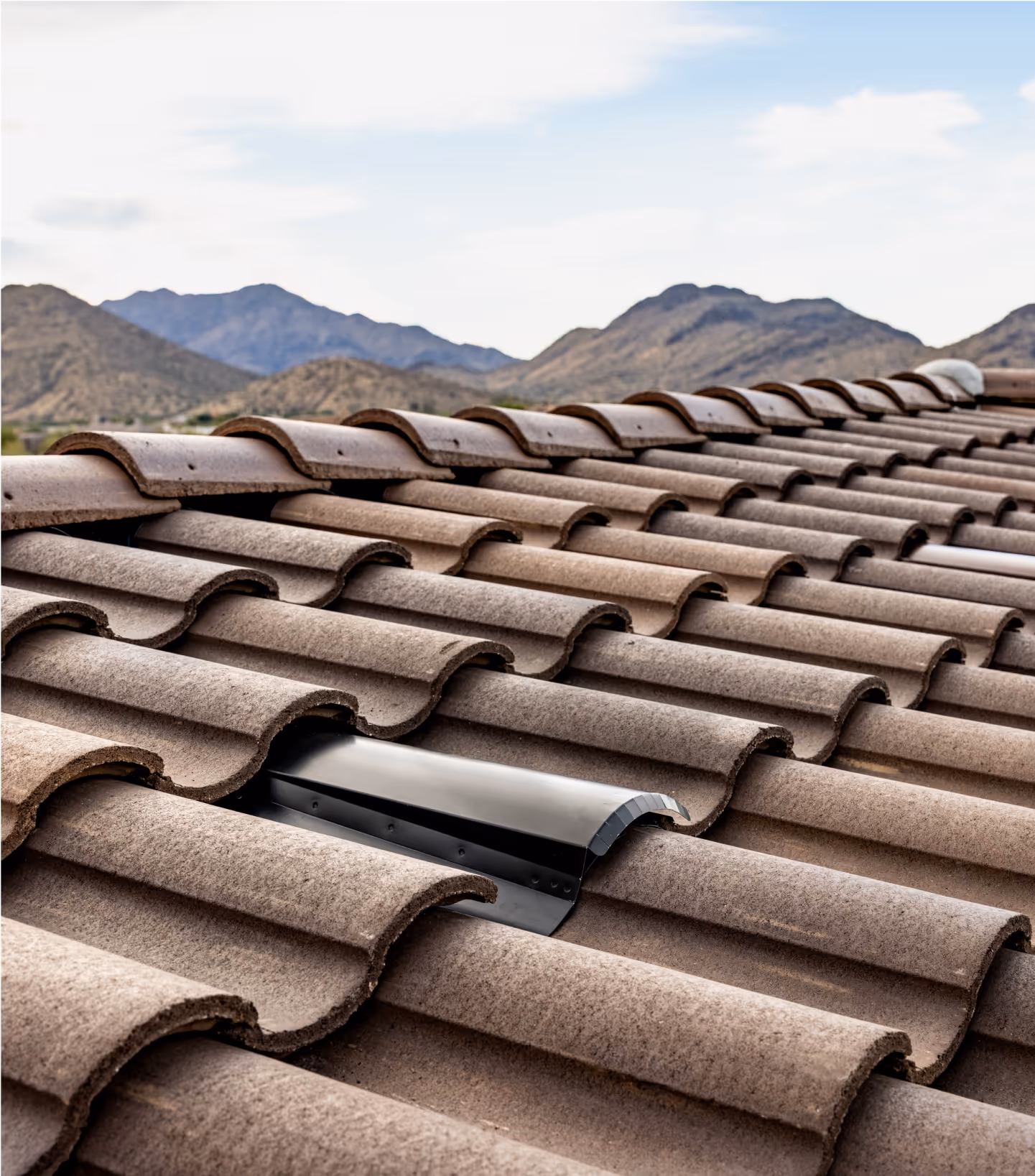

Coronado "S" Tile Vent
The Coronado “S” Tile Vent seamlessly integrates with surrounding “S” shaped concrete tiles. Available in Brown and Charcoal, they’re prefinished to blend with most popular roof tile colors. Compatible with most major concrete “S” tile manufacturer profiles, ensuring versatile and precise roof integration.
- NFVA - 100 Square Inches
- Hole Size - 22.5” x 7.5”

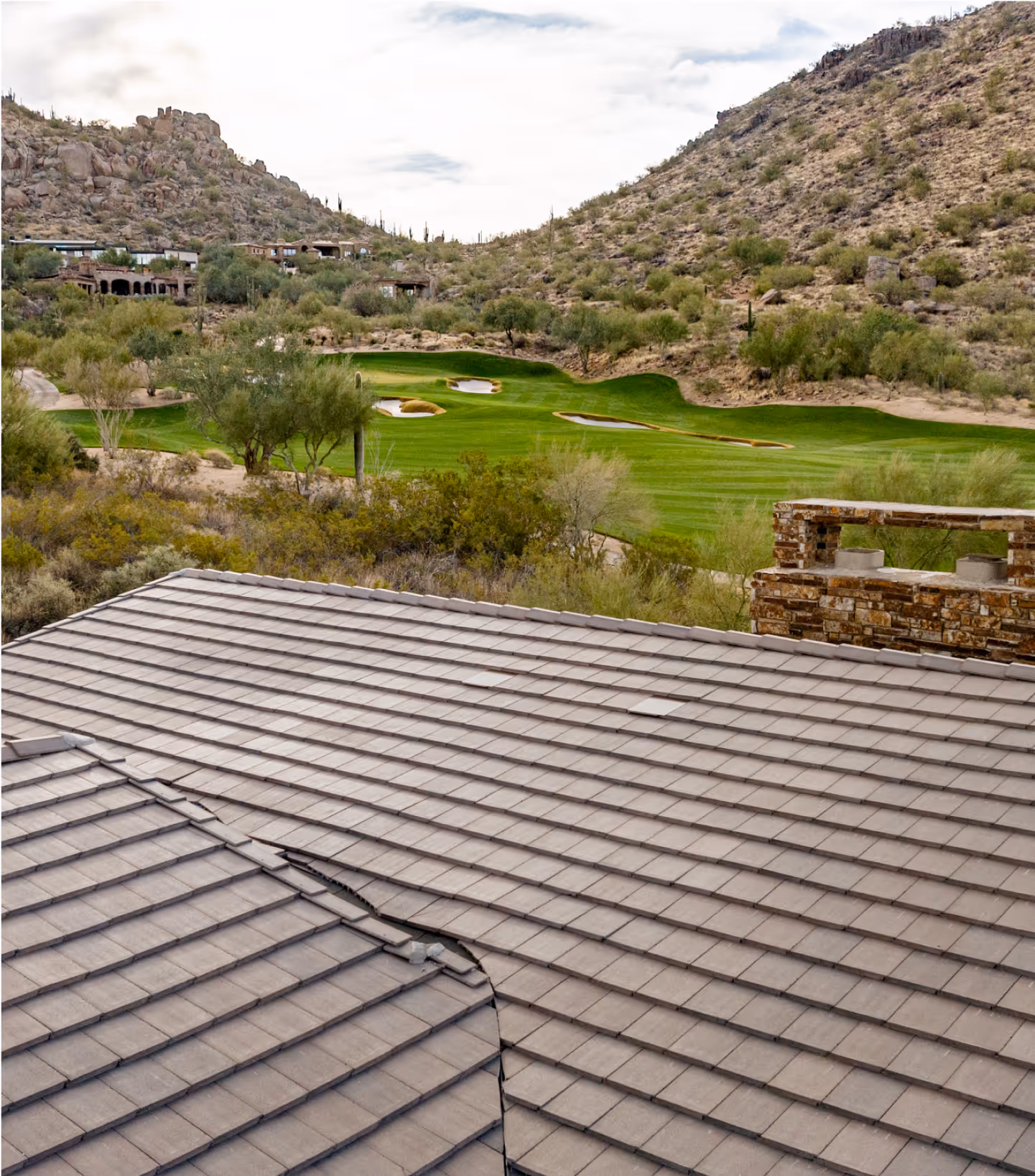

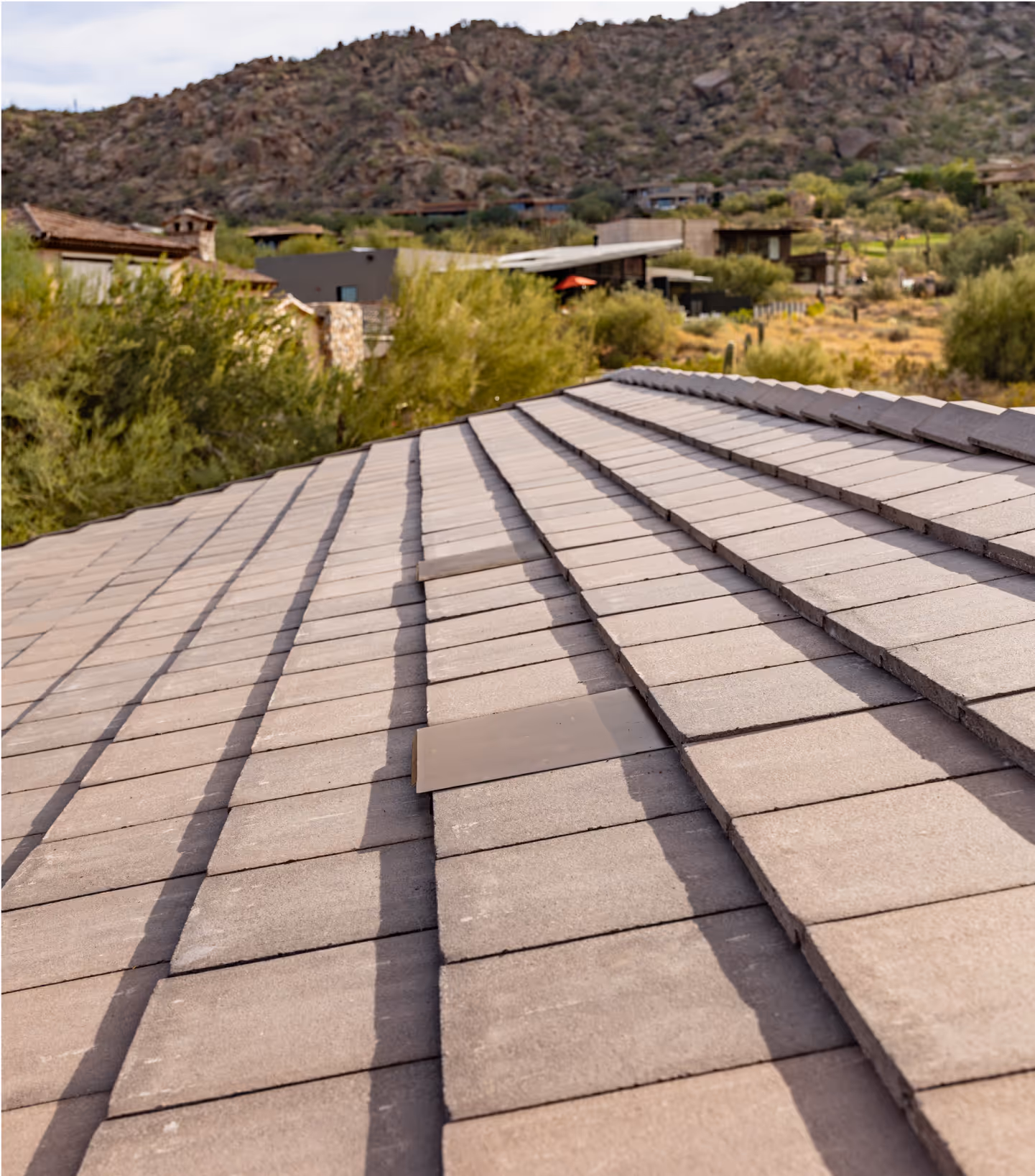

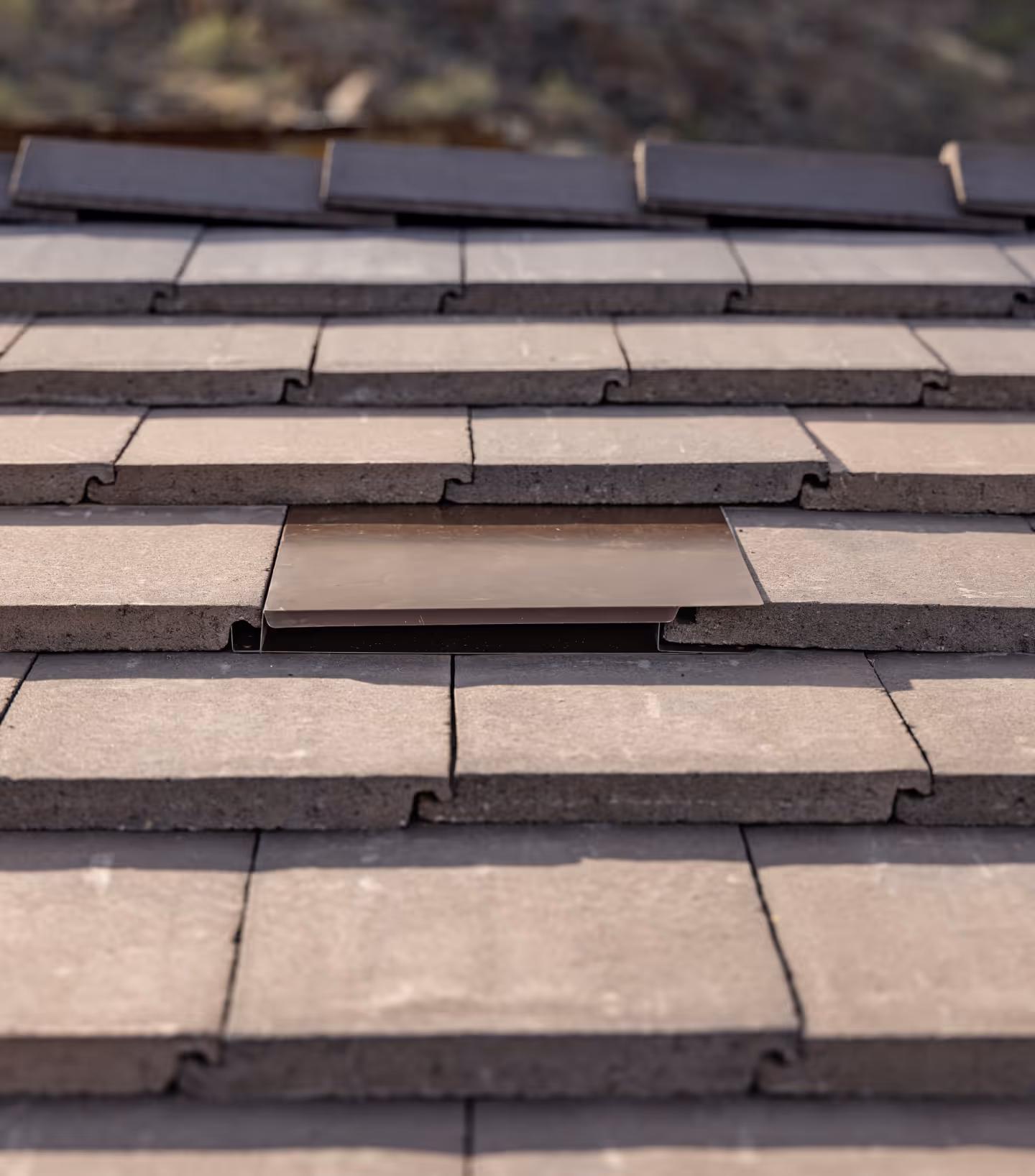

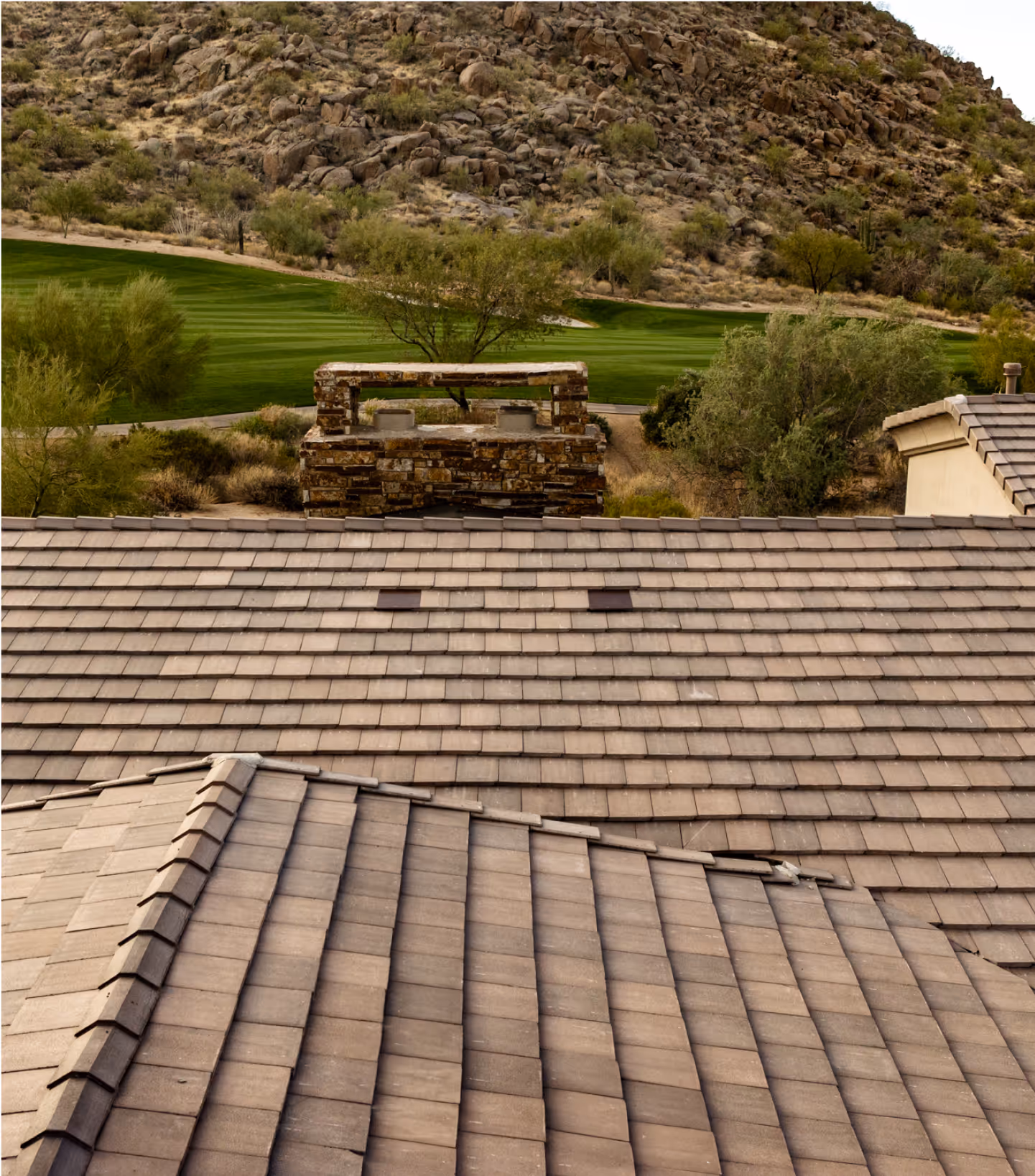

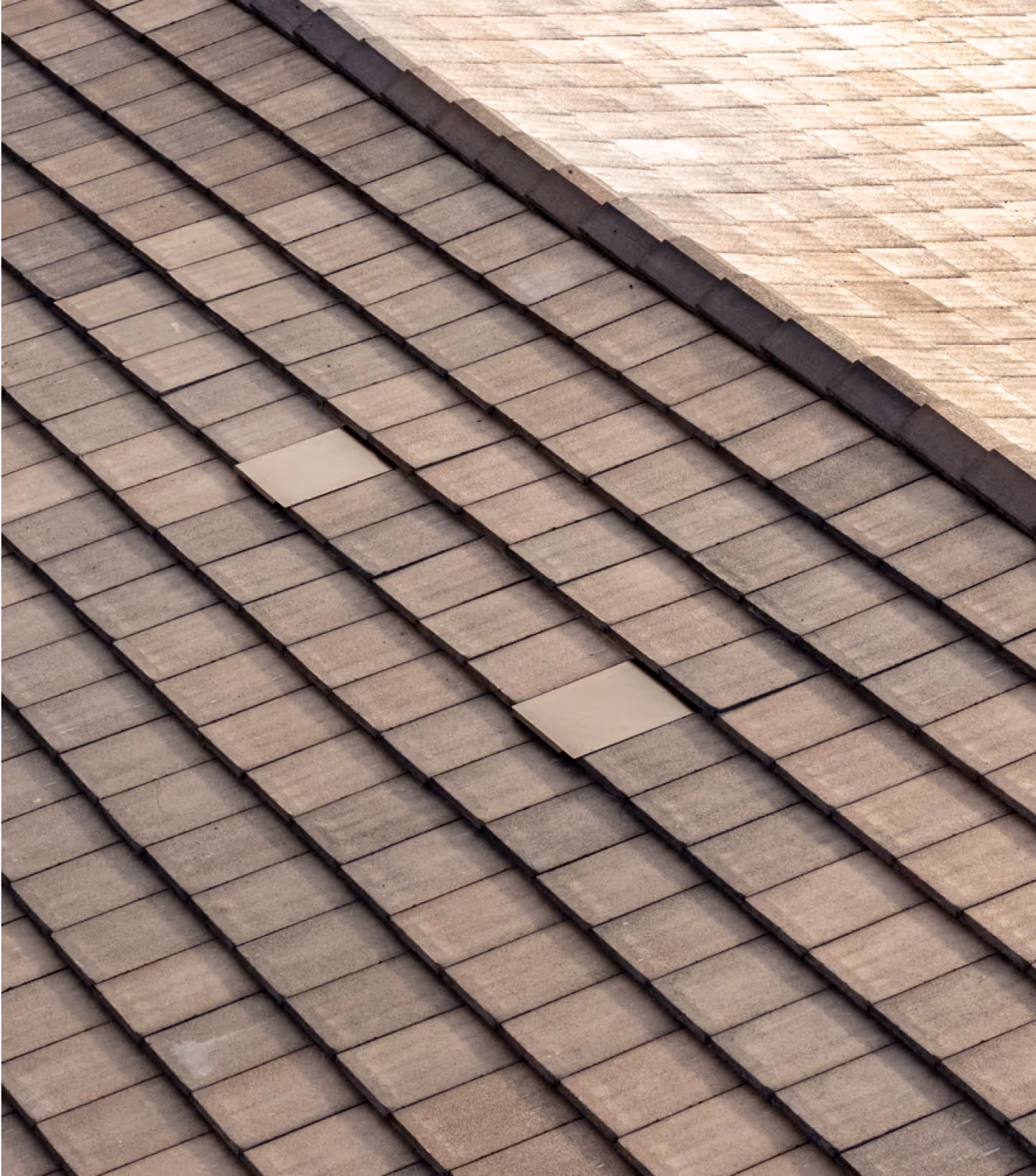

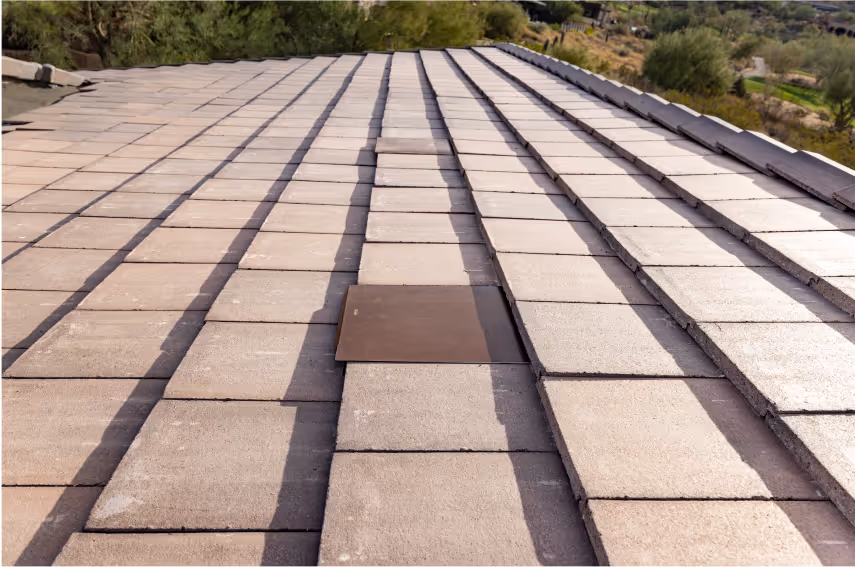

Coronado Flat Tile Vent
The Coronado Flat Tile Vent blends seamlessly with surrounding flat roof tiles. Available in Brown and Charcoal, they’re prefinished to blend with most popular roof tile colors. Compatible with most major concrete flat tile manufacturer profiles, ensuring versatile and precise roof integration.
- NFVA - 100 Square Inches
- Hole Size - 22.5” x 7.5”

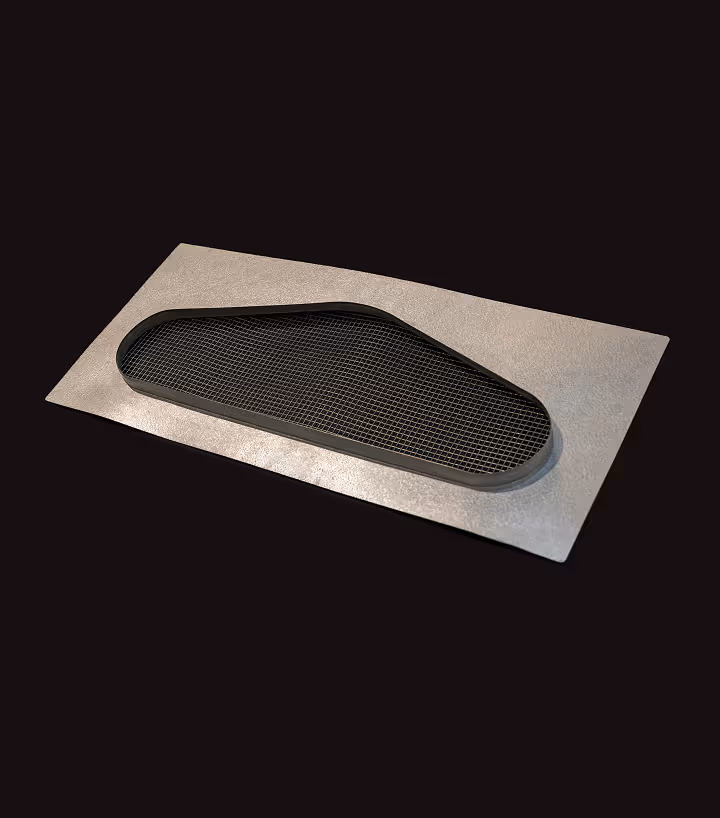

Coronado Primary Vent

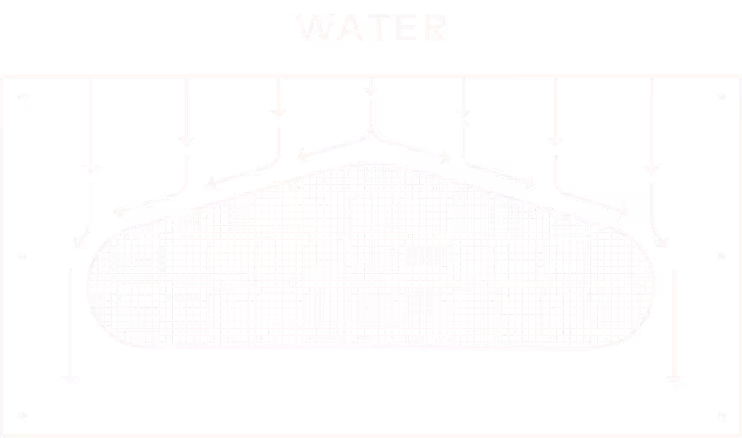

The Coronado Primary Vent features a revolutionary design that forces water around the vent rather than behind it, eliminating the common “ramping” effect seen with other products. The hole size is similar in shape and size to other popular tile vents, making it a simple substitute for builders and architects.
Primary Vent Water Test
Installation
Instructions
Coronado Tile Vents install easily, similar to other leading vents. Cut a 22.5” x 7.5” hole, install the primary vent, and secure it with fasteners. Then install the secondary vent over the primary as per instructions. The vent can be placed up to 5 tiles away, left to right. See the videos below for detailed instructions, or click here to download instructions for the S Tile Vent and the Flat Tile Vent.
Coronado "S" Tile Vent
Full Instructions
Secondary Install Only
Coronado Flat Tile Vent
Full Instructions
Secondary Install Only
Tech Bulletins
- Vent Installed Below a Discharge - Flat Tile OnlyVentilación instalada debajo de una descarga – solo Teja Plana
- Tile Course Line In-Line Through the Vent Opening - Flat TileLínea del curso de tejas / batten a través de la apertura de laventilación – Teja Plana
- Primary Vent Hole Layout Locations - Eagle & Westlake TileUbicaciones de agujeros – Eagle & Westlake Tile
- Tile-to-Tile Joints Over the Primary VentJuntas teja-a-teja sobre la ventilación principal
- Bottom of Tile Visible from the Attic SpaceParte inferior de la teja visible desde el ático
Why our vents outperform the competition
Superior Color Options
- Pre-Painted: Our vents come prefinished in Standard Brown and Charcoal.
- Customizable: The primed surface allows for easy spray painting to match any roof color, providing a seamless look no matter the design.
- Competitor Disadvantage: Most competitors lack stock pre-painted options, making customization time-consuming and costly.
Better Waterproofing
Better Looking
Exceptional Ventilation Performance
- More NFVA: Our vents provide more Net Free Vent Area (NFVA) compared to our competitors, ensuring superior airflow and better attic ventilation.
- Competitor Disadvantage: Less NFVA means reduced efficiency and potential long-term damage to roof structures.
Convenient Packaging
- Efficient Bundling: Our vents are conveniently packaged in smaller boxes (5qty per box), making storage transportation, and loading easier.
- Time-Saving Installation: This efficient packaging setup simplifies handling during installation, saving time and effort.
- Competitor Disadvantage: Competitors often package inefficiently, leading to wasted space and unnecessary hassle.
Competitive Pricing
- Lower Overall Cost: Our vents are priced competitively, often coming in lower than our competitors, offering unmatched value for top-tier quality.
- Competitor Disadvantage: Higher costs for less performance and fewer features make competitors' products a less attractive choice.
How our features size up compared to the competition
Find a Representative
For more information about our Coronado Vents, need details on how to place an order, or have a question about our tile roof vents, contact your local representative today.

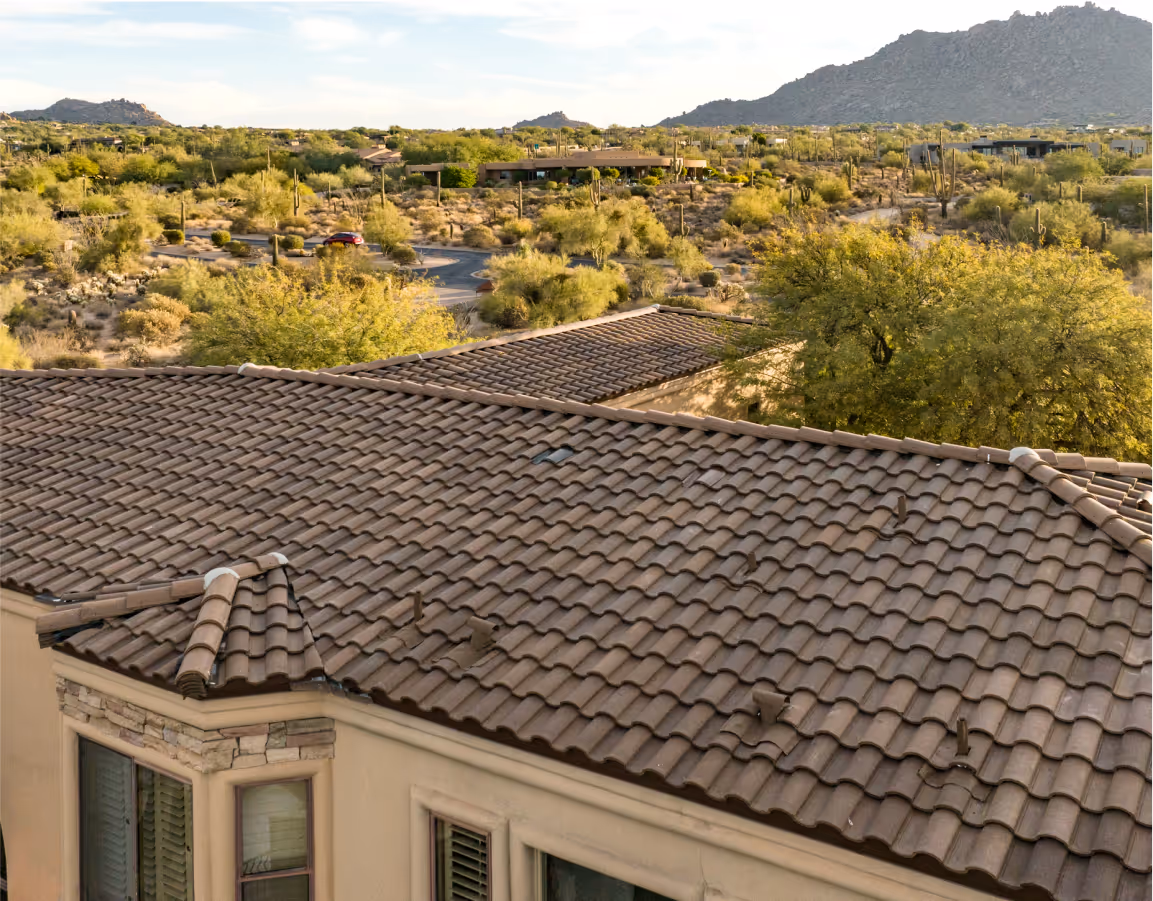

Distributors
Coronado Vents are only sold through distribution partners.
